SPECIFICATION
Max Range: 100km (Assist Mode), No Limit (Manual Mode)
Test Condition: The max range is achieved with a 75kg load and a constant speed of 15km/h on flat roads without strong winds at 26°C.
Max. Speed: 25 km/h
Max. Load: 120 kg
Motor: 250W (Rated Voltage 36V; Ins Max Power 500W; Max Output Torque 50N.M)
Motor Brand: ANADA
Motor Brand: XOFO Motor

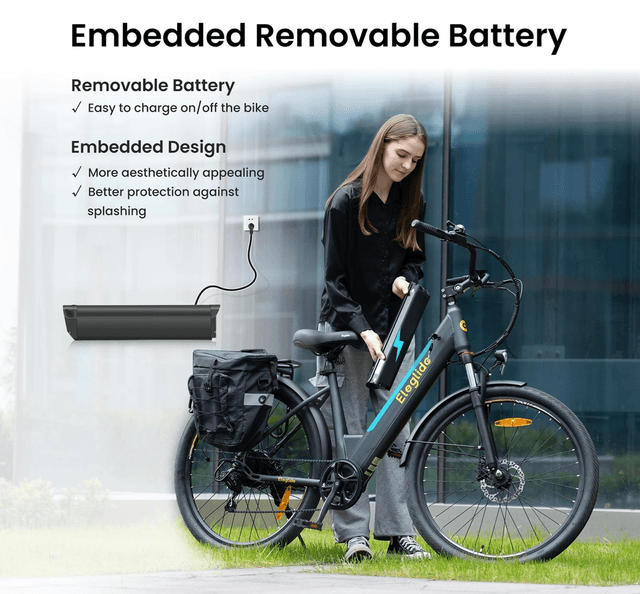

Battery: 12.5Ah, 36V, 450Wh, with Battery Protection System
Charging Time: About 7 hours
Charger Output: 100-240V 2A (Input), 42V 2A (Output)

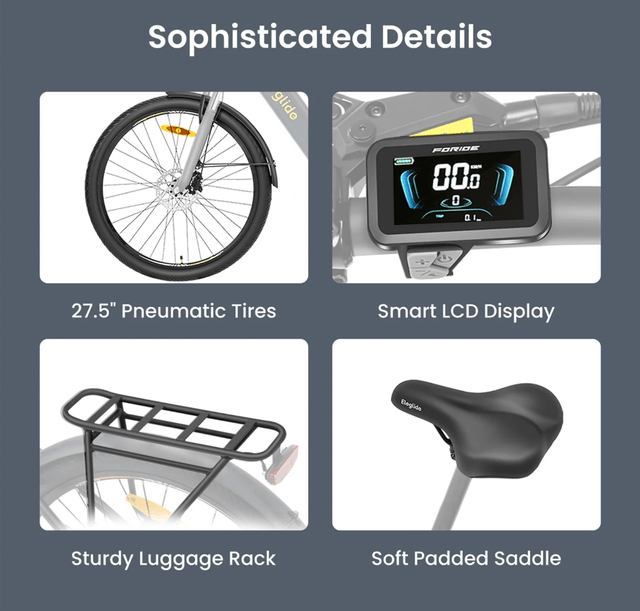

Tires: CST 27.5"*1.75" Pneumatic Tires
Fork: Hydraulic with Lockout-80mm travel
Suspension: Mechanical Damping with Lockout
Front & Rear Brake: Mechanical Disc-160mm Rotor
Derailleur: Shimano Gear 7 Speeds (Rear)
Waterproof Rate: IPX4
Height of Saddle: 810mm-990mm
Saddle: Selle Royal (SR)
Display: 3.5" LCD
Recommended height of cyclists: 155-195cm (5.09ft-6.39ft)
5 Speed Mode
Speed 1: 12 km/h
Speed 2: 16 km/h
Speed 3: 20 km/h
Speed 4: 23 km/h
Speed 5: 25 km/h
Weight & Size
Weight: 26KG
